Creating an anchor locker at the bow

Post by Jesper Milling » Wed Oct 10, 2012 7:31 am

This is a test of creating an illustrated posting.

I wanted to add more pictures, so here comes a few. Well pictures are not added where the cursor is positioned, but at the buttom.

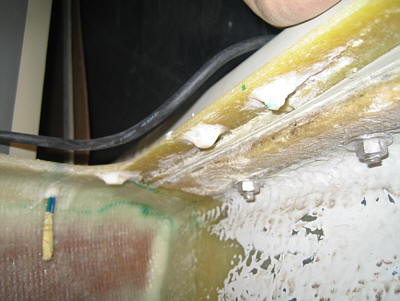

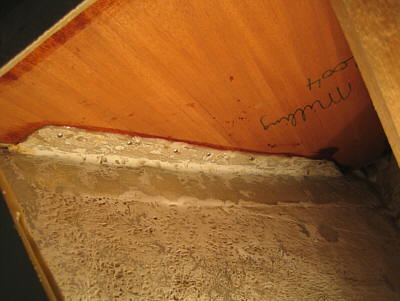

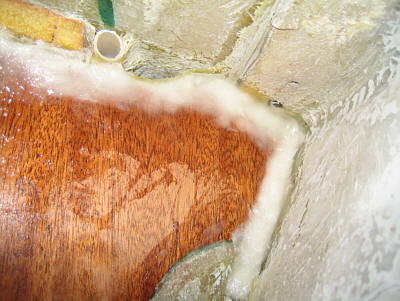

Fitting the new bulkhead

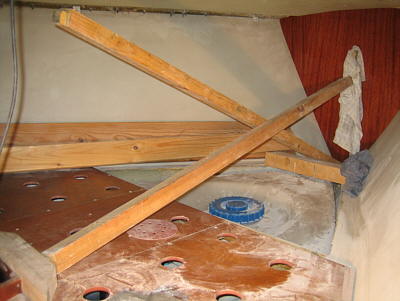

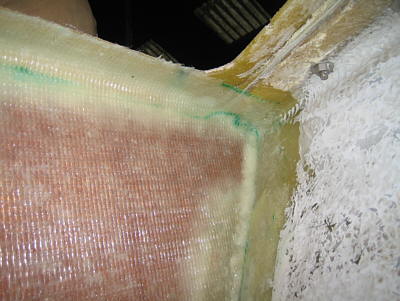

A stick is lifting the deck a few mm to better fit the curve of the cutout, wich eventually will serve as a lid (door).

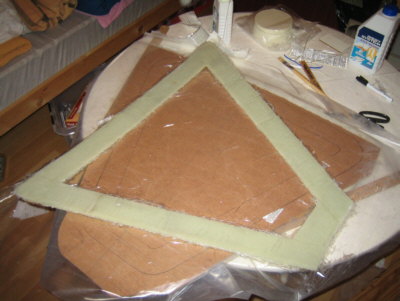

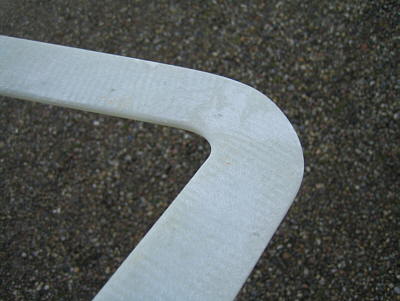

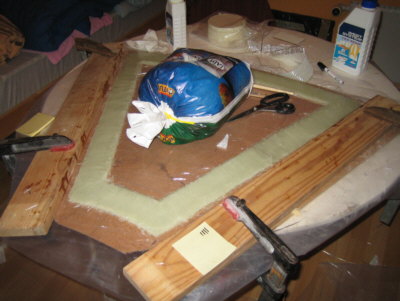

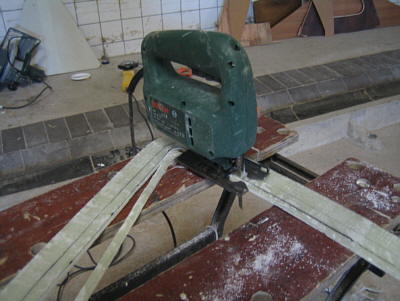

The frame was made on a sheet af "masonit" curved over the cutout, to give it the rigth curve.

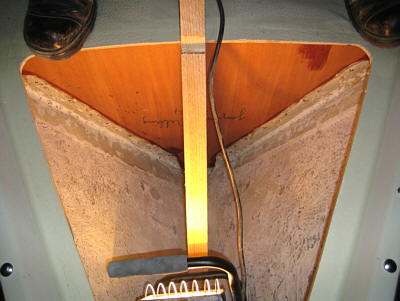

I created a number of "tops" or notches tha were all sanded down to a specific hight. I then screwed the frame on to these notches and filled the gap with an epoxy filler made from epoxy and some special fibers from West System.
IMG_0966 cropped.jpg

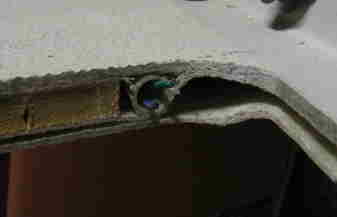

Plastic pipe containing the wires for the navigation lights. I pulled out the wires a few centimeters, soldered extensions, covered with shrink wrap, and the pushed the connection back in the pipe.
IMG_0966 cropped.jpg (3.76 KiB) Viewed 3823 times

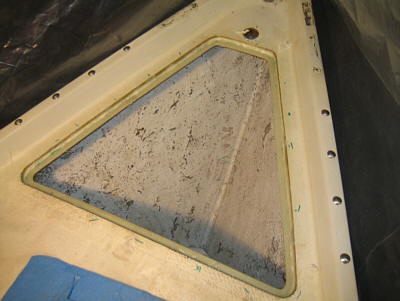

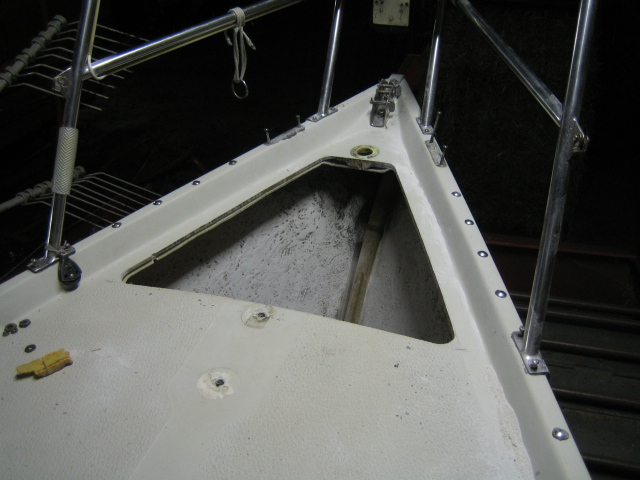

After cutting the hole in the deck.
If I find more pictures I wil add them later.
Kind regards, Jesper Milling
